Alpha-Bit Tic Box

PREVIOUS   NEXT   ALL

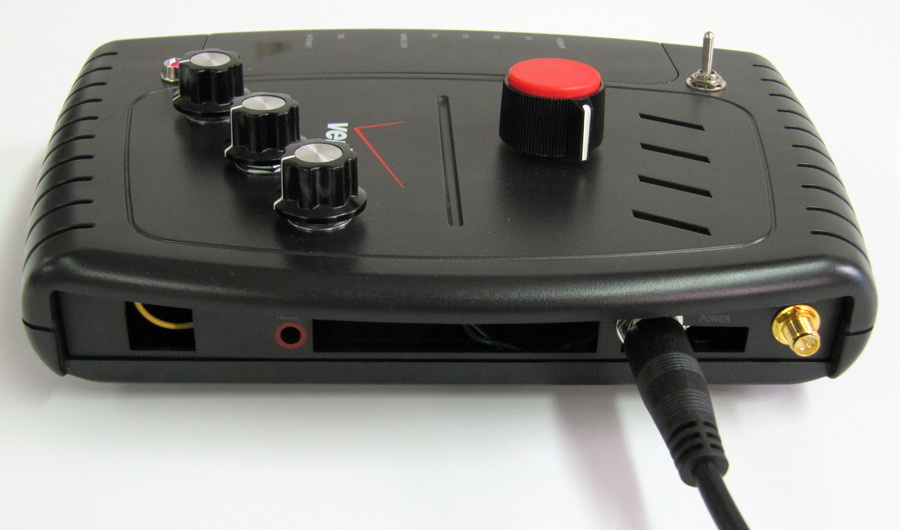

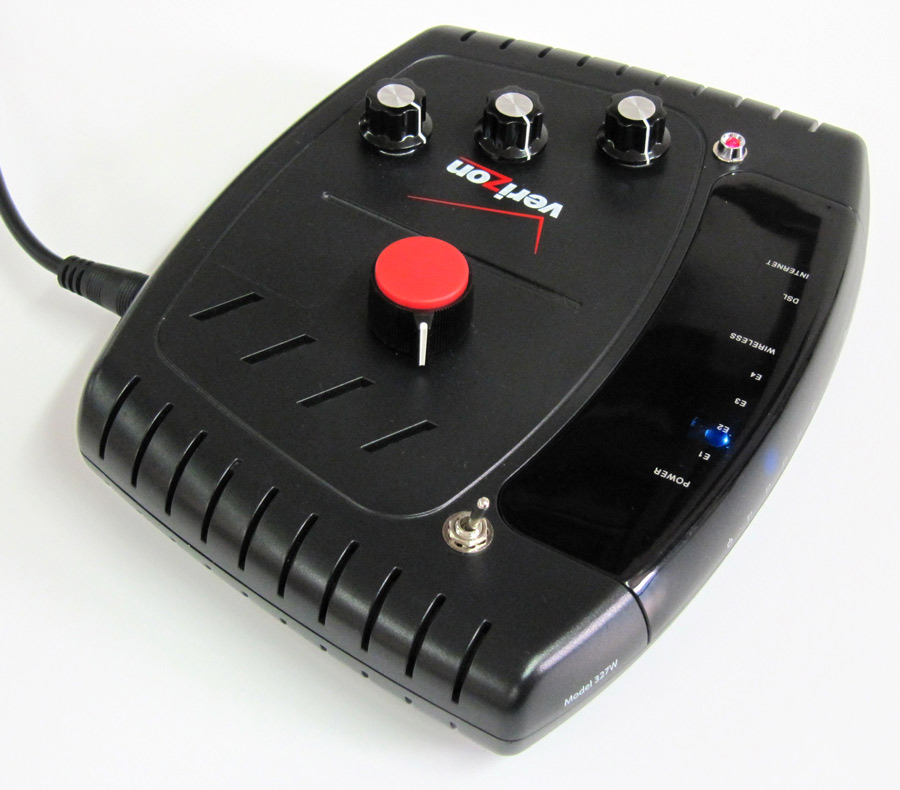

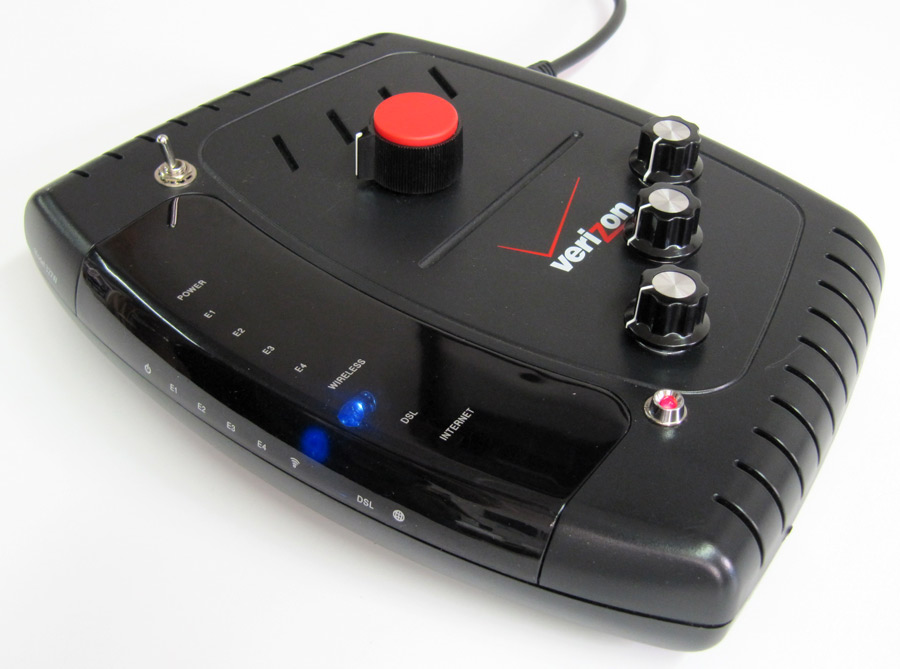

Made from the venerable 74C14 and the 4040 counter, three knobs control three simple square waves that range from slow ticking to high pitch squealing. Each one is individually tunable to allow for complex interference and cross tones to be created. A fourth knob controls the scrolling row of blue LED lights that have been included because they look cool.
